Plots the tree-based statistics that characterize the cross-species conservation of the modules and marks the modules that were found to be conserved/diverged.
Usage
plotConservedDivergedModules(
module_conservation,
N = 5L,
rank_by = "residual",
robust_only = FALSE,
colors = NULL,
font_size = 14,
label_size = 3.5
)Arguments
- module_conservation
Data frame of cross-species conservation measures per module.
Columns required in case the focus of interest is conservation and overall divergence:
- focus
Character, the focus of interest in terms of cross-species conservation, "overall" if the focus of interest is conservation and overall divergence.
- regulator
Character, transcriptional regulator.
- total_tree_length
Numeric, total tree length per module (typically the median across all jackknife versions of the module).
- lwr_total_tree_length
Numeric, the lower bound of the confidence interval of the total tree length calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- upr_total_tree_length
Numeric, the upper bound of the confidence interval of the total tree length calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- within_species_diversity
Numeric, within-species diversity per module (typically the median across all jackknife versions of the module).
- lwr_within_species_diversity
Numeric, the lower bound of the confidence interval of the within-species diversity calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- upr_within_species_diversity
Numeric, the upper bound of the confidence interval of the within-species diversity calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- fit
Numeric, the fitted total tree length at the within-species diversity value of the module.
- lwr_fit
Numeric, the lower bound of the prediction interval of the fit.
- upr_fit
Numeric, the upper bound of the prediction interval of the fit.
- residual
Numeric, the residual of the module in the linear model. It is calculated as the difference between the observed and expected (fitted) total tree lengths.
- studentized_residual
Numeric, the externally studentized residual of the module. This statistic measures how strongly a module deviates from the fitted regression line relative to the expected variability.
- category
Character, classification of the module based on the prediction interval: "within_expectation" if the module falls inside the prediction interval of the fit, "diverged" if a module has a higher total tree length than the upper boundary of the prediction interval, and "conserved" if a module has a lower total tree length than the lower boundary of the prediction interval (only for the overall analysis).
- robust
Logical, indicates whether the module passes an additional robustness filter based on the false discovery rate (FDR). Modules with an FDR below
fdr_cutoffare marked asTRUE.
Columns required in case the focus of interest is species-specific divergence:
- focus
Character, the focus of interest in terms of cross-species conservation, the name of a species if the focus of interest is species-specific divergence
- regulator
Character, transcriptional regulator.
- {{species}}_subtree_length
Numeric, the subtree length of the species per module (typically the median across all jackknife versions of the module).
- lwr_{{species}}_subtree_length
Numeric, the lower bound of the confidence interval of the species subtree length calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- upr_{{species}}_subtree_length
Numeric, the upper bound of the confidence interval of the species subtree length calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- {{species}}_diversity
Numeric, the diversity of the species of interest per module (typically the median across all jackknife versions of the module).
- lwr_{{species}}_diversity
Numeric, the lower bound of the confidence interval of the species-specific diversity calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- upr_{{species}}_diversity
Numeric, the upper bound of the confidence interval of the species-specific diversity calculated based on the jackknifed versions of the module (optional, only needed for plotting error bars later on).
- fit
Numeric, the fitted subtree length of a species.
- lwr_fit
Numeric, the lower bound of the prediction interval of the fit.
- upr_fit
Numeric, the upper bound of the prediction interval of the fit.
- residual
Numeric, the residual of the module in the linear model. It is calculated as the difference between the observed and expected (fitted) subtree length of a species.
- studentized_residual
Numeric, the externally studentized residual of the module. This statistic measures how strongly a module deviates from the fitted regression line relative to the expected variability.
- category
Character, classification of the module based on the prediction interval: "diverged" if a module has a higher subtree length for the species of interest than the upper boundary of the prediction interval, "within_expectation" otherwise.
- robust
Logical, indicates whether the module passes an additional robustness filter based on the false discovery rate (FDR). Modules with an FDR below
fdr_cutoffare marked asTRUE.
- N
Integer, the number of top conserved and diverged modules to label.
- rank_by
Character, the name of the variable used to rank modules when selecting the top N conserved and diverged modules to label. Options are "residual" (default) and "studentized_residual".
- robust_only
Logical, if
TRUE, the top conserved and diverged modules are selected only among modules that pass the robustness filter (robust == TRUE). IfFALSE(default), the top modules are selected among all modules regardless of robustness.- colors
(Named) character vector of length 2, the colors for the diverged and conserved modules.
- font_size
Numeric, font size (default: 14).
- label_size
Numeric, the size of the labels for the most conserved and diverged modules (default: 3.5).
Details
To determine whether a module as a whole is conserved, diverged overall or diverged on a specific lineage, the CroCoNet approach relies on module trees reconstructed from pairwise preservation scores between replicates and statistics calculated based on these trees (total tree length, subtree lengths of the species, overall within-species and species-specific diversity, for details please see calculatePresStats, reconstructTrees, calculateTreeStats and findConservedDivergedModules).

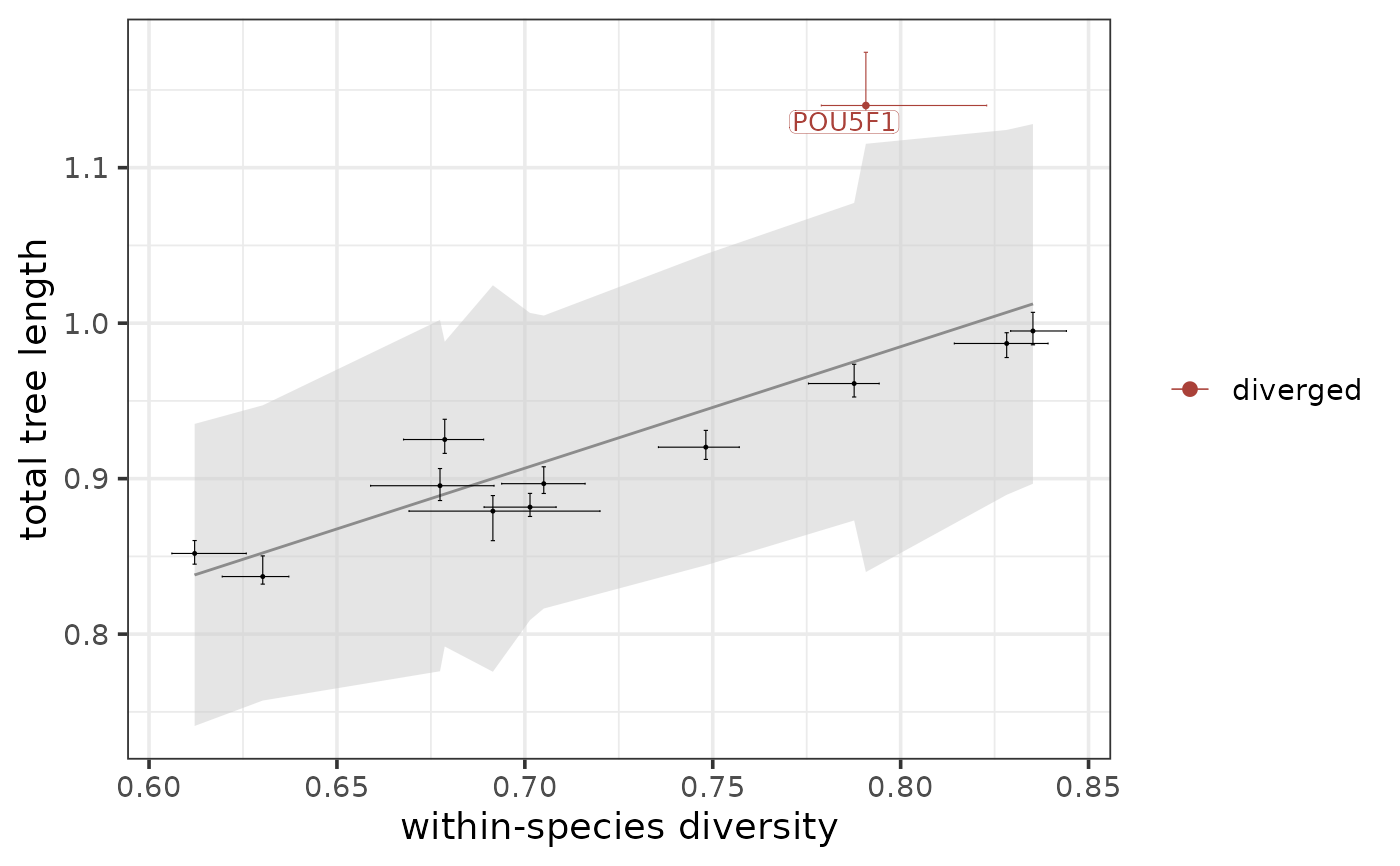

The function plots each input module along the regression line that captures the relationship between total tree length and within-species diversity (in case the focus of interest is conservation and overall divergence) or between the subtree length and diversity of a species (in case the focus of interest is divergence between this particular species and all others). A module is considered diverged overall/in a species-specific manner if it falls above the prediction interval of the regression line, while a module is considered conserved if it falls below the prediction interval of the regression line.
